The following is a list of sizes and technical specs for the CAMPAGNOLO magnesium wheels used on various ABARTH models.
The list includes some CROMODORA wheels which can also be used.
Original wheels are no longer available but sometimes we are lucky enough to find some so keep an eye on the "rare finds" section of our website in case something turns up!
All original manufacturer's part numbers are listed for reference purposes only.
Following this list you will find a list of replica wheels which we currently supply.
Original wheels are no longer available but sometimes we are lucky enough to find some so keep an eye on the "rare finds" section of our website in case something turns up!
All original manufacturer's part numbers are listed for reference purposes only.
Following this list you will find a list of replica wheels which we currently supply.
Wheels
| Part N° | Manufacturer | Size | Offset (mm) | Weight (kgs) | Material | PCD Bolt pattern | Holes | ||
| ABA 1551/R |
|
"LESMO" | 4.5 x 12" | 30 | 4.20 | Allum. | 190 mm | 4 | N |
| ABA 1883 |
|
CROMODORA / CD30 | 5.5J x 13" | 7 | 3.87 | Magnes. | 98 mm | 4 | R |
| ABA 1947/R |
|
"TC" | 4.5 x 13" | 5.00 | Allum. | 98 mm | 4 | N | |
| ABA 2063 |
|

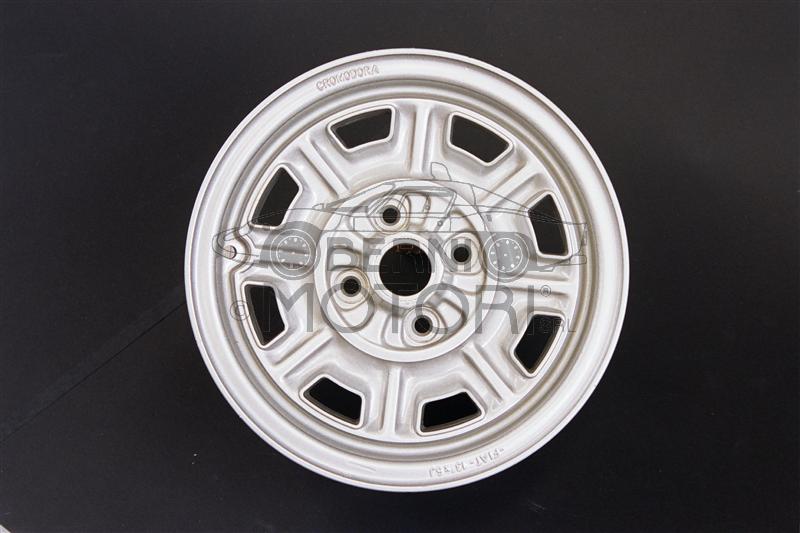

CROMODORA / CD5 | 5J x 13" | 27 | 3.85 | Magnes. | 98 mm | 4 | R |
| ABA 2064 | CROMODORA / CD39 | 6J x 13" | 15 | 4.00 | Magnes. | 98 mm | 4 | R | |
| ABA 2179 |
|
CAMPAGNOLO | 5.5J x 13" | 4.20 | Magnes. | 98 mm | 4 | R | |
| ABA 2180 |
|
CROMODORA / CD11 | 5.5J x 13" | 4.20 | Magnes. | 98 mm | 4 | R | |
| ABA 2367 |
|
TECNOMAGNESIO | 7J x 13" | 4.50 | Magnes. | 98 mm | 4 | N | |
| ABA 2368 |
|
TECNOMAGNESIO | 8J x 13" | 4.90 | Magnes. | 98 mm | 4 | N | |
| ABA 2369 |
|
TECNOMAGNESIO | 9J x 13" | 5.00 | Magnes. | 98 mm | 4 | N | |
| ABA 2370 |
|
TECNOMAGNESIO | 10J x 13" | 5.80 | Magnes. | 98 mm | 4 | N | |
| ABA 2371 |
|
CROMODORA / CD3 | 5 x 13" | 4.00 | Magnes. | 98 mm | 4 | N | |
| ABA 2390 |
|
RM | 7 x 13" | 10 | 7.00 | Allum. | 98 mm | 4 | N |
| ABA 2402 |
|
MBG / BERNI MOTORI | 5.5 x 13" | -39 | 5.00 | Allum. | 98 mm | 4 | N |
| ABA 2430 |
|
MBG / BERNI MOTORI | 7 x 13" | -14 | 5.60 | Allum. | 98 mm | 4 | N |
| ABA 2431 |
|
MBG / BERNI MOTORI | 8 x 13" | 0 | 6.20 | Allum. | 98 mm | 4 | N |
| ABA 2455 |
|
RM | 4.5 x 12" | 34 | 4.00 | Allum. AlSi10 | 98 mm | 4 | N |
| ABA 2477 |
|

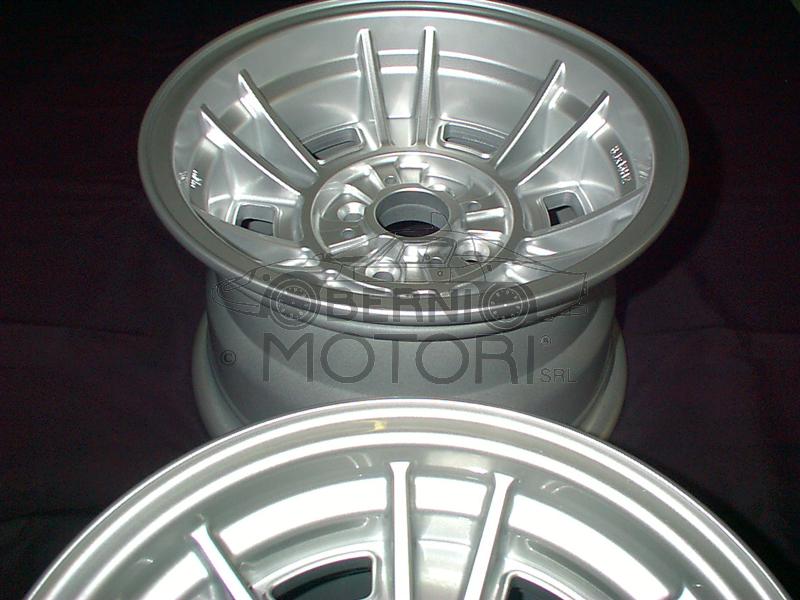

RM | 8 x 13" | 7.50 | Allum. | 98 mm | 4 | N | |
| ABA 2541 |
|
RM | 5 x 13" | 38 | Allum. | 98mm | 4 | N | |
| ABA 2618 |
|
BM | 7 x 13" | 5.10 | Allum. | 98mm | 4 | N | |
| ABA 2619 |
|
BM | 8 x 13" | 5.10 | Allum. | 98mm | 4 | N | |
| ABA 2633 | BM | 8 x 13" | Allum. | 4 | N | ||||
| ABA 2634 |
|
BM | 9 x 13" | Allum. | 4 | N | |||
| ABA 2635 | BM | 10 x 13" | Allum. | 4 | N | ||||
| ABA 2636 |
|
BM | 12 x 13" | Allum. | 4 | N | |||
| BM 0060 |
|
BM | 6 x 13" | ET15 | 6 | Allum. | 130mm | 4 | N |
N.B. Wheels in last column marked "N" = new, "R" = used, reconditioned.
Accessories
| Art. | Description | |
| ABA 1824 | Self-locking nut. | |
| ABA 1825 | Stud. | |
| ABA 2323/L | Bolt 12 x 1.5 x 61mm. | |
| ABA 2323/S | Bolt 12 x 1.5 x 51mm. | |
| BM 0055 |
|
Cap with ring. Ø 55mm. |
